lauren elise clark

nayarit master plan

nayarit master plan w/ edsa inc.

nayarit master plan

year / 2011

location / nayarit, mexico

design staff / edsa inc.

project responsibilities / site analysis & inventory, assisted project manager in master plan and enlargement designs, production of concept drawings

This community master plan for the area of Nayarit, Mexico has been envisioned as a high-end resort and residential community destination in the Riviera Nayarit. Single family and attached residences, hotels and beach clubs, wellness facilities and other amenities were thoughtfully implemented within the site, connecting the project to the unique, existing landscape. This project will serve as an example of taking a wholistic approach to master planning and land development, respecting the land and culture it rests in.

* drawings/graphics by me while working at edsa inc., unless otherwise indicated.

nayarit overall master plan (drawn while working at edsa inc.)

nayarit overall master plan (drawn while working at edsa inc.)

the PROCESS

The planning process began through site analysis to better understand how the proposed land uses would best fit the site. The master plan follows the existing topography of the site, causing the least impact possible to the existing natural resources while still taking advantage of the site's opportunities and beauty.

topography analysis - elevation

topography analysis - elevation

topography analysis - slope

topography analysis - slope

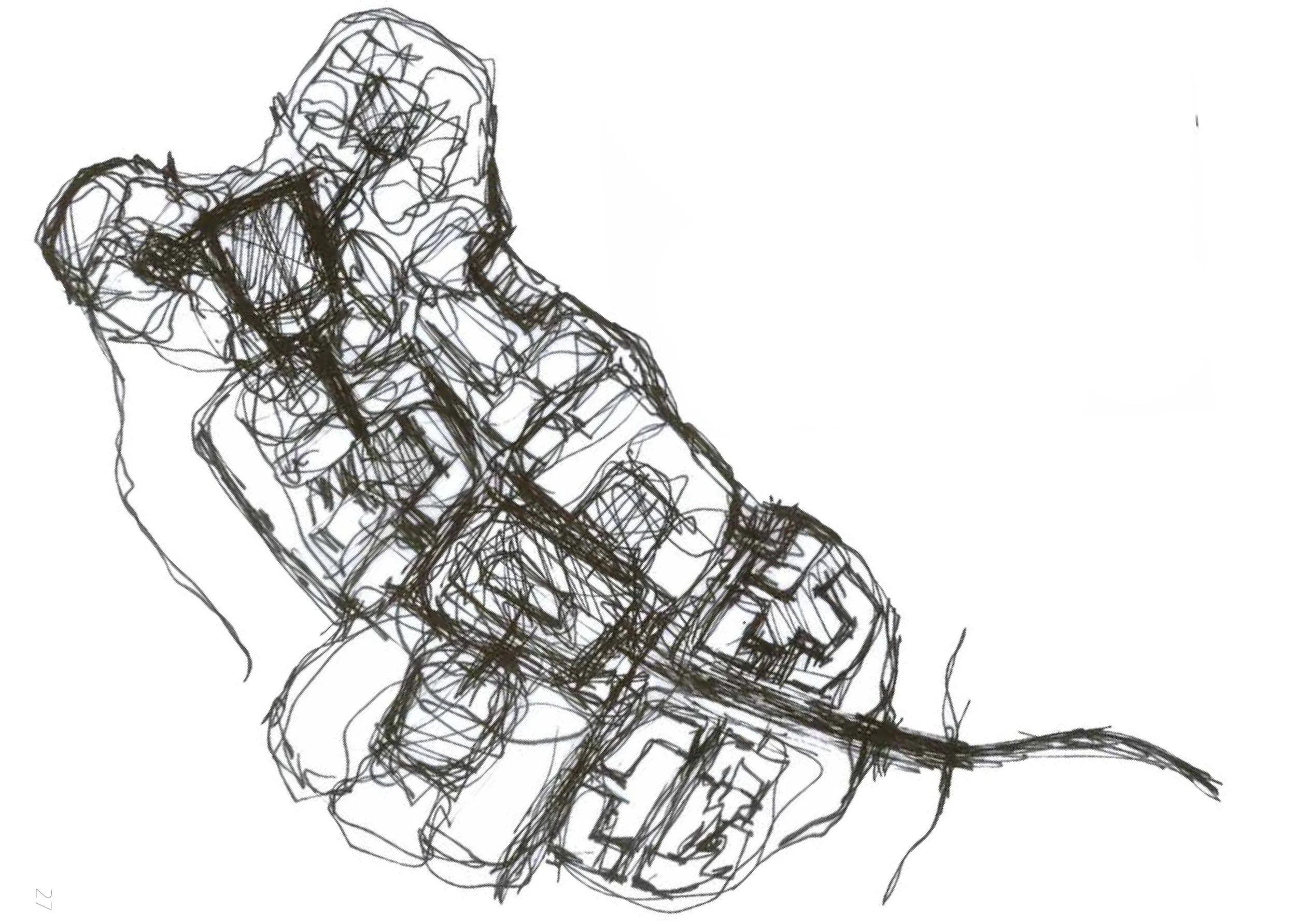

fishing village sketch

fishing village sketch

fishing village concept

fishing village concept

fishing village section

fishing village section

spa section

spa section

spa section

spa section
